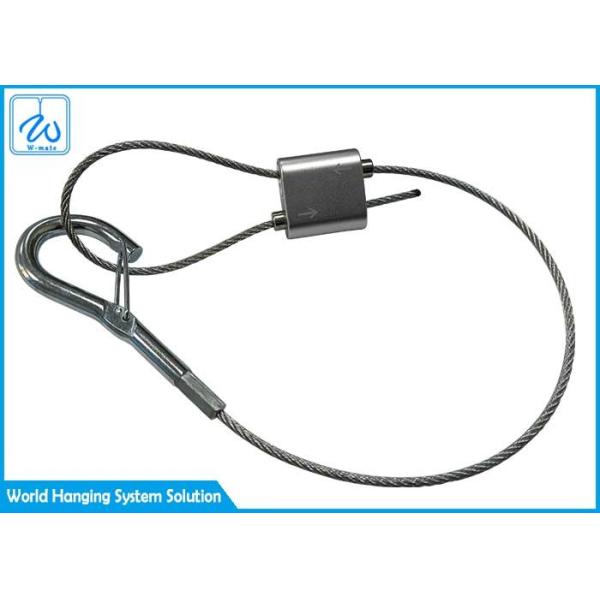

Professional Supplier Cable Hook Gripper Single Cable W/ Ceiling Gripper & Gated Hook

Name: Professional Supplier Cable Hook Gripper Single Cable W Ceiling Gripper amp Gated Hook
Brand: w-mate
Price: 1 USD

Quality Professional Supplier Cable Hook Gripper Single Cable W/ Ceiling Gripper & Gated Hook for sale

Brand Name : w-mate

Model Number : WR21011302

Certification : SGS,RoHS

Place of Origin : Dongguan,China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100,000pcs/month

Delivery Time : 10-15Work Days

Packaging Details : PE bag +PP bag + carton (if you have other requirements, please contact us)

Product name : Cable Hook Gripper

Material : Brass

Cable Construction : 7x7 or 7x19

Application : lighting,hanging

MOQ : 1000pcs

Lead time : 7 days if there were enough material in stock

Sample : Free Sample (Please contact our customer service)

Contact Now

Cable Hook Gripper - How to use?

Making Loop Gripper is very easy and time saving.
Simply feed the cable into the arrow-guided clutch where the built-in locking mechanism automatically grips the wire.
Our Looping gripper is faster, reliable and secure equipment for Lighting, HAVC, Display Hanging, making Loops and many more.
Looping Gripper is available in for different wire diameters

Parameter:


Cable Diameter	Mini Breaking Load	Save Work Load	Size(LWH)
φ0.8mm	12.5kg	2.5kg	15158.5
φ1.0mm	50kg	10kg	15158.5
φ1.2mm	80kg	16kg	201810
φ1.5mm	130kg	26kg	201810
φ1.8mm	180kg	36kg	252512
φ2.0mm	200kg	40kg	252512
φ2.5mm	300kg	60kg	303015
φ3.0mm	400kg	80kg	303015
φ3.5mm	450kg	90kg	424222
φ4.0mm	500kg	100kg
φ5.0mm	600kg	120kg

Professional Supplier Cable Hook Gripper Single Cable W/ Ceiling Gripper & Gated Hook

Cable Hook Gripper - Easy To Use

(1) Pass the wire rope through the cabel looping gripper.
(2) Loop cable through/around support.
(3) Pass wire rope back through cabel looping gripper.
(4) Push wire rope through clamp leaving 2” to 3” tail, then apply tension on wire rope.
(5) To adjust, remove tension and pull wire rope slightly to disengage, slide pin in direction shown by arrow to release wire rop.

Professional Supplier Cable Hook Gripper Single Cable W/ Ceiling Gripper & Gated Hook

Competitive Advantage:

1. We are derict maufacture,can be contrct the quality and price,to sale the high quality and best price forout customers.

2. The national patent of our looping gripper products.

3. We have over ten years of experience in suspension applications.

4. Free sample for our customer,but need you pay for the freight.

5. Suspension products and design solution supplied fast and freely.

6. Best design oriented for your special requirements.

7. Lifelong technical support.

8. Professional team support.

9. Standard Design.

10 .Concept proposal.

11. 3D Drawing.

12. Part delivery.

Our service:

1. We can deliver within short time. Several styles for your choose.

2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.

3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4. All of our products are produced by our professional workman, you can totally believe our service.

Professional Supplier Cable Hook Gripper Single Cable W/ Ceiling Gripper & Gated Hook

Contact us today for all your cable support needs.
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!

FAQ:

How to place an order?

We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks.

What is your trading and payment terms?

1. Payment term: T/T 30% deposit after order confirmed, 70% balance before shipment or paypal for small amount .
2. Lead time : normally 15-25days after deposit received.
3. Sample policy : Samples are always available for each model . Samples can be ready in 3-10 days once payment received .
4. Shipping port: Shenzhen/Guangzhou China.
5. Discounts : We offer discount for big quantity.

How is the quality of your company controlled? How is the cost controlled?

We have four inspections before and after, and we have a complete set of QC inspection processes and solutions.
